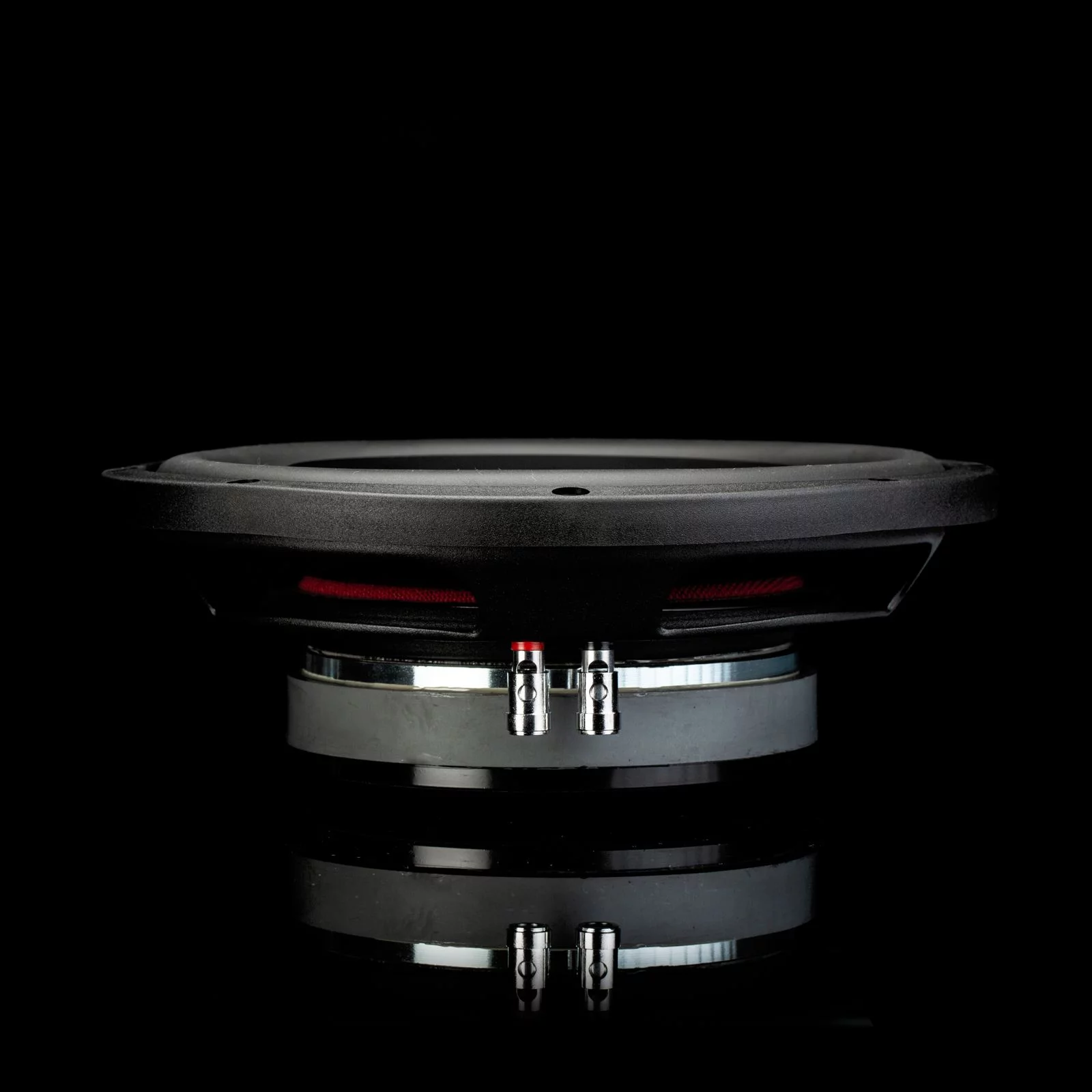

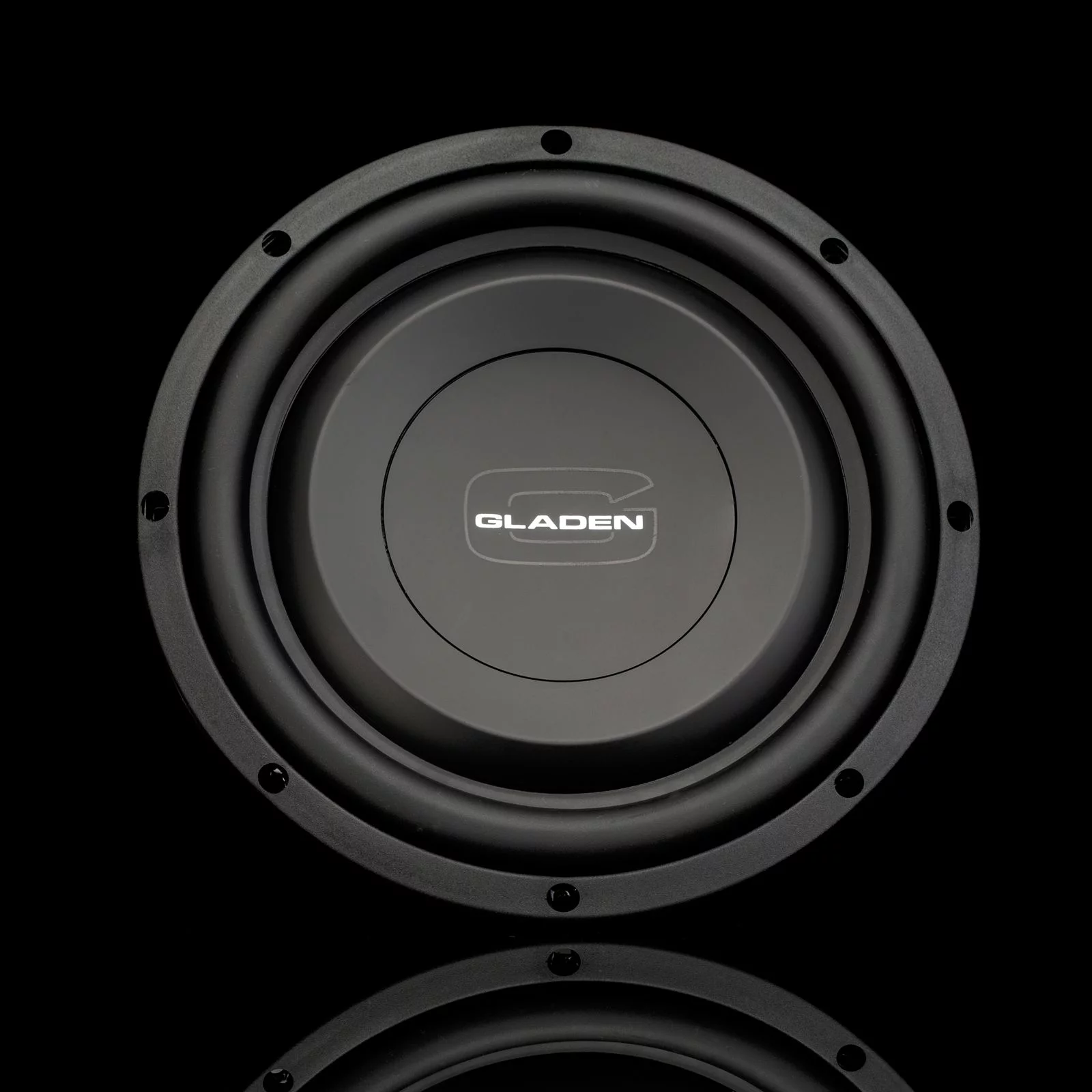

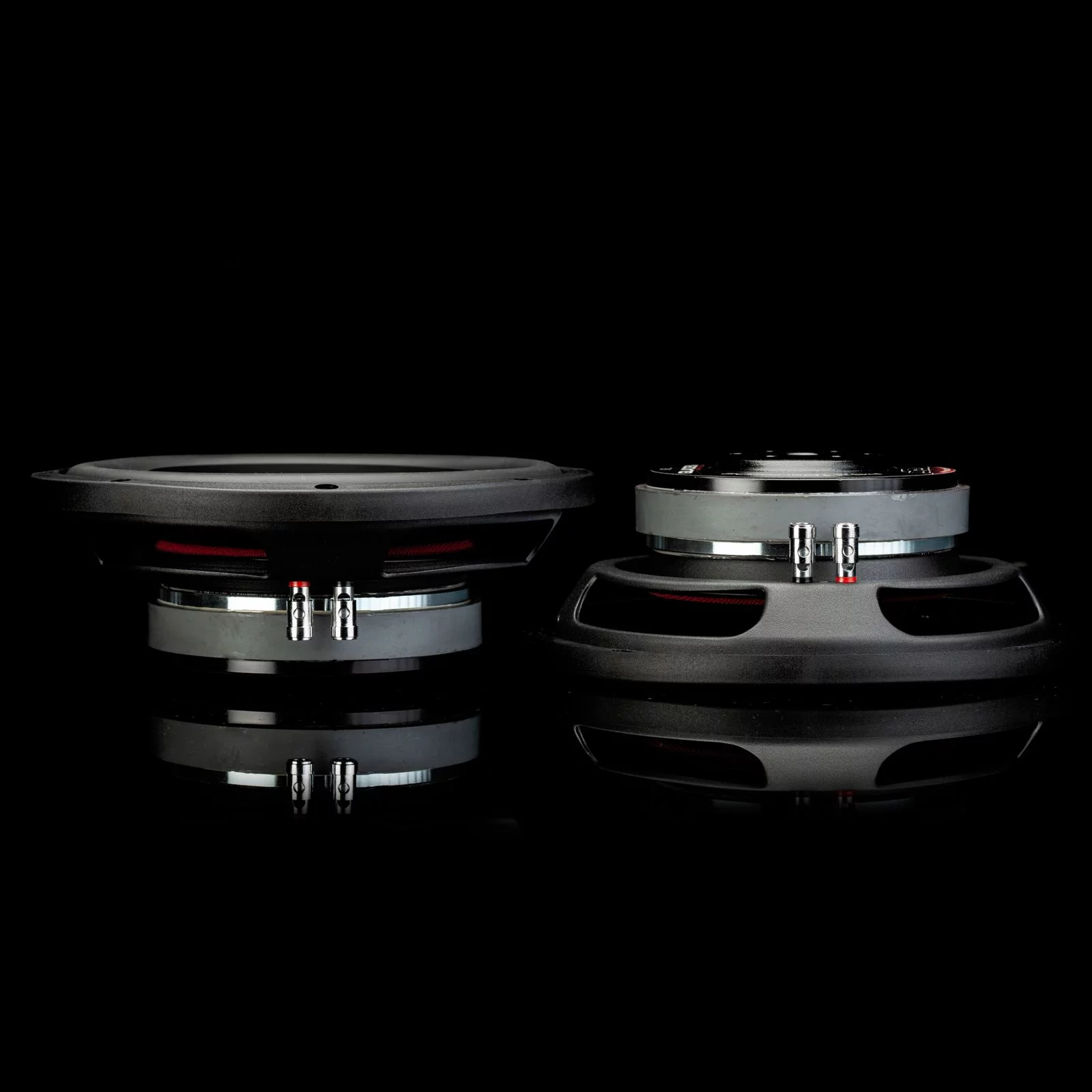

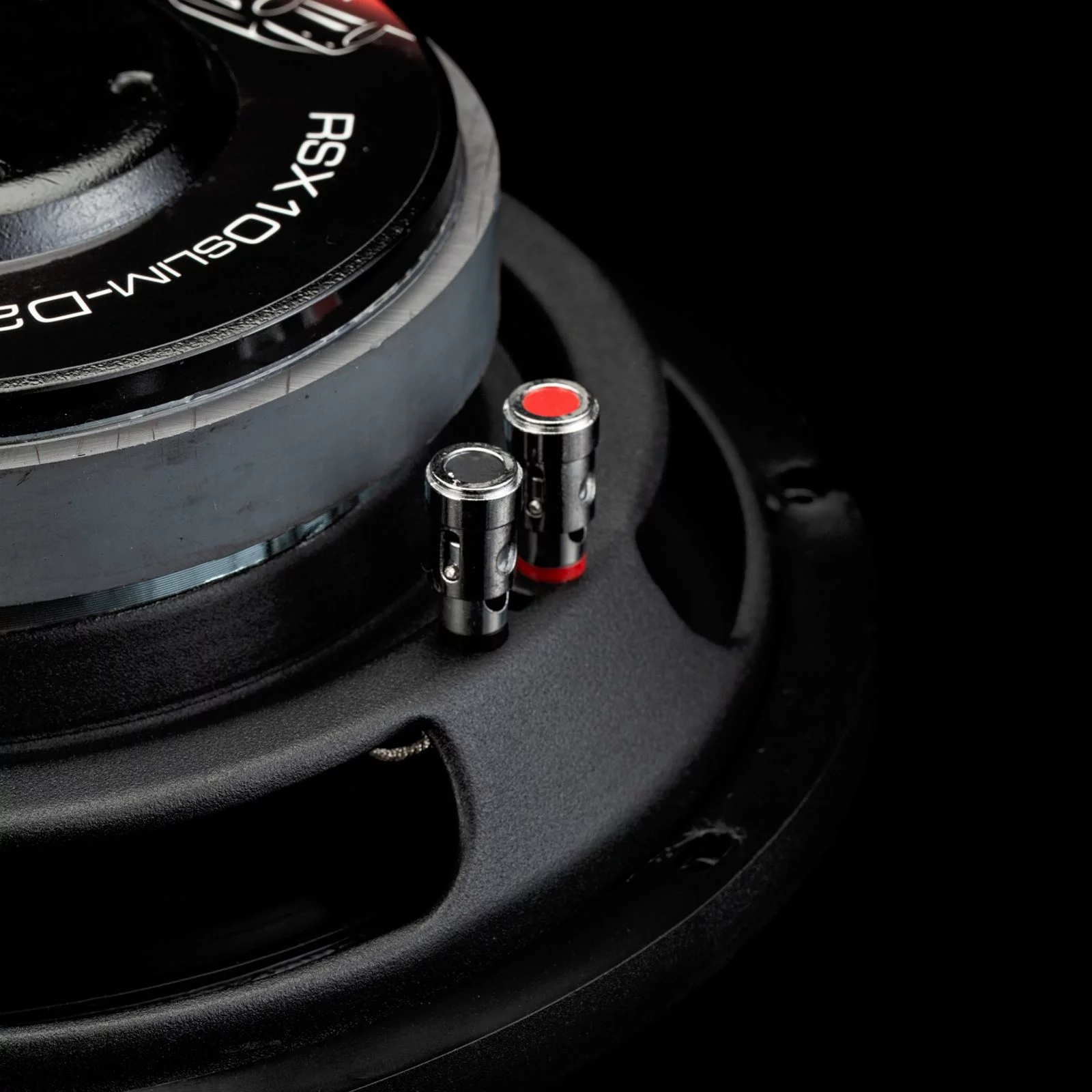

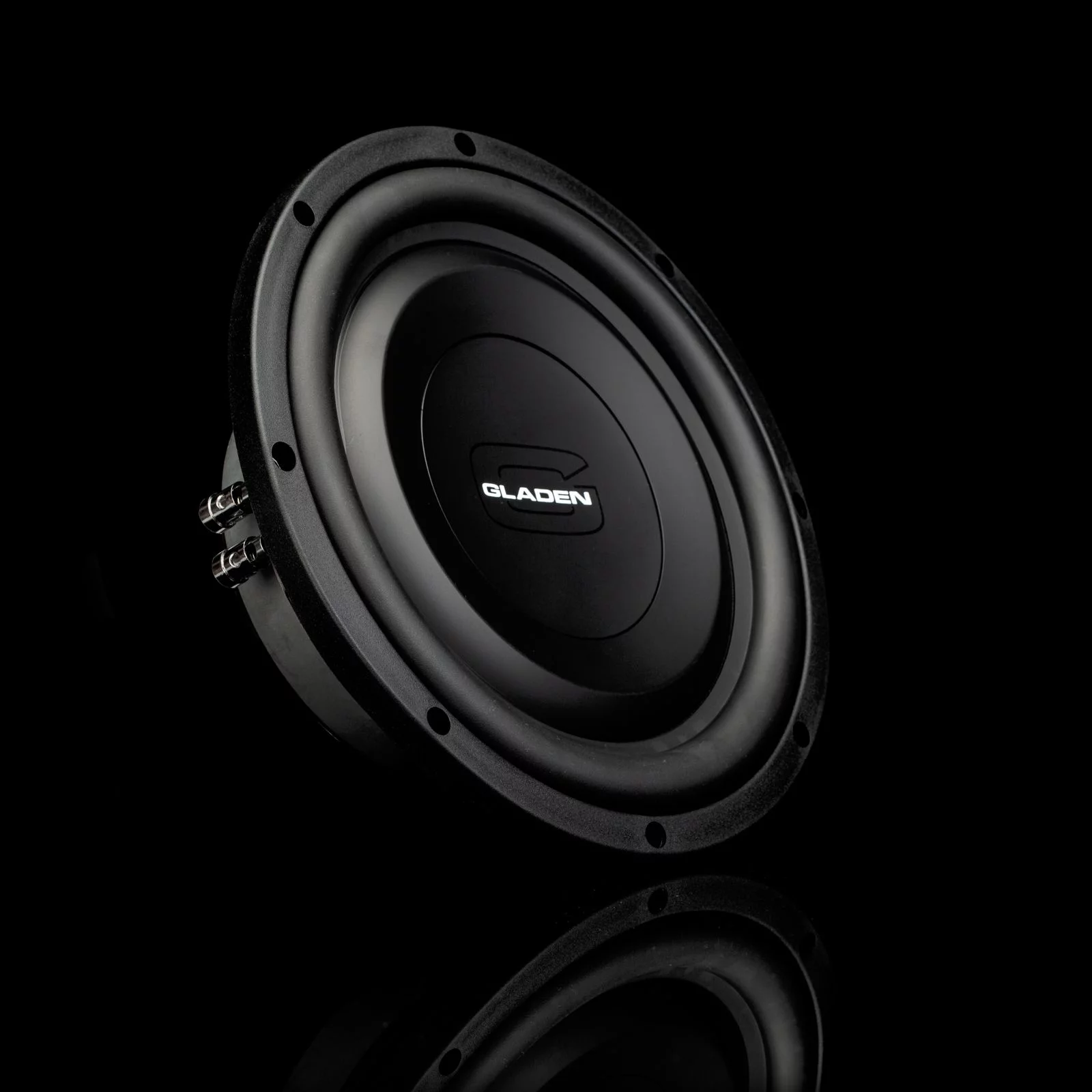

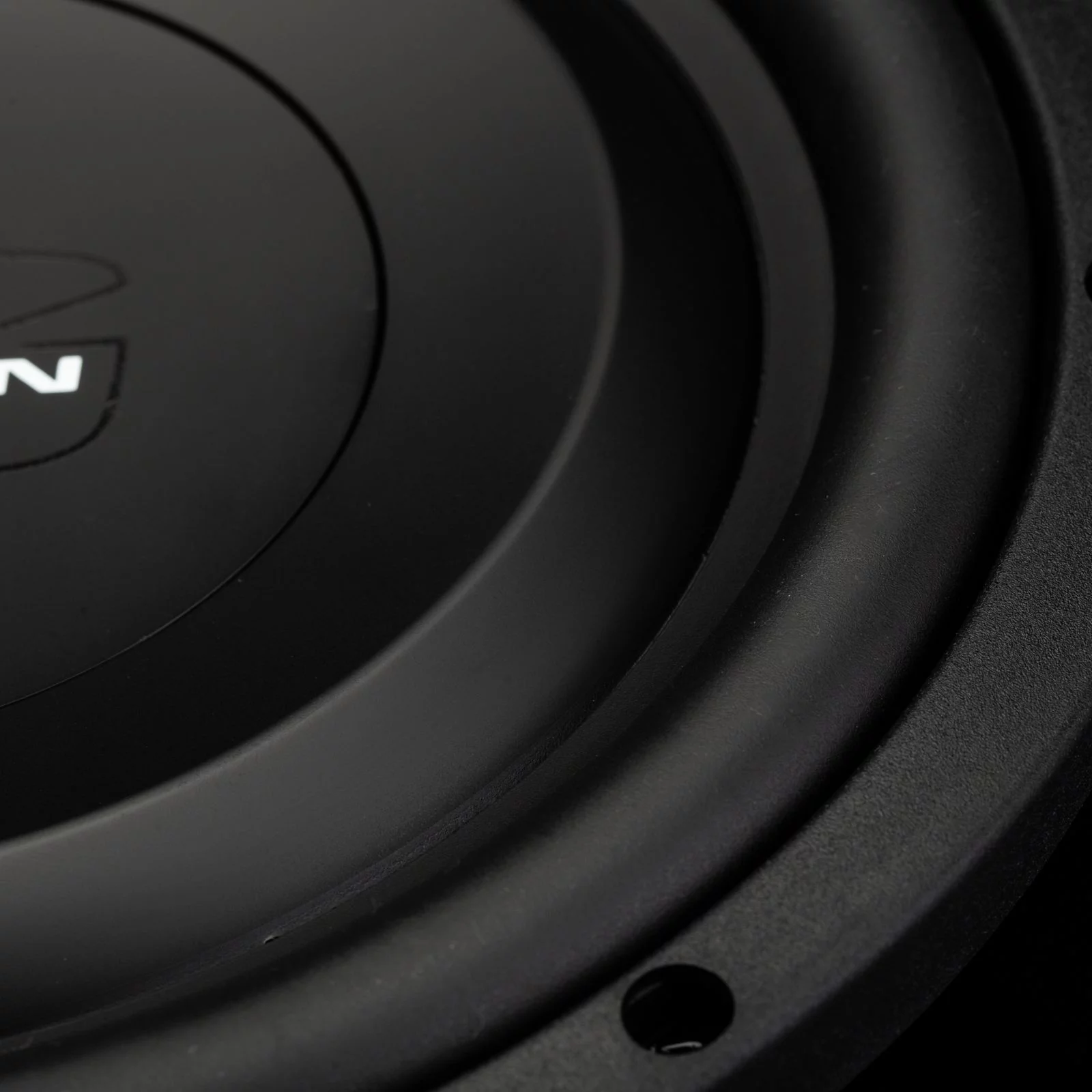

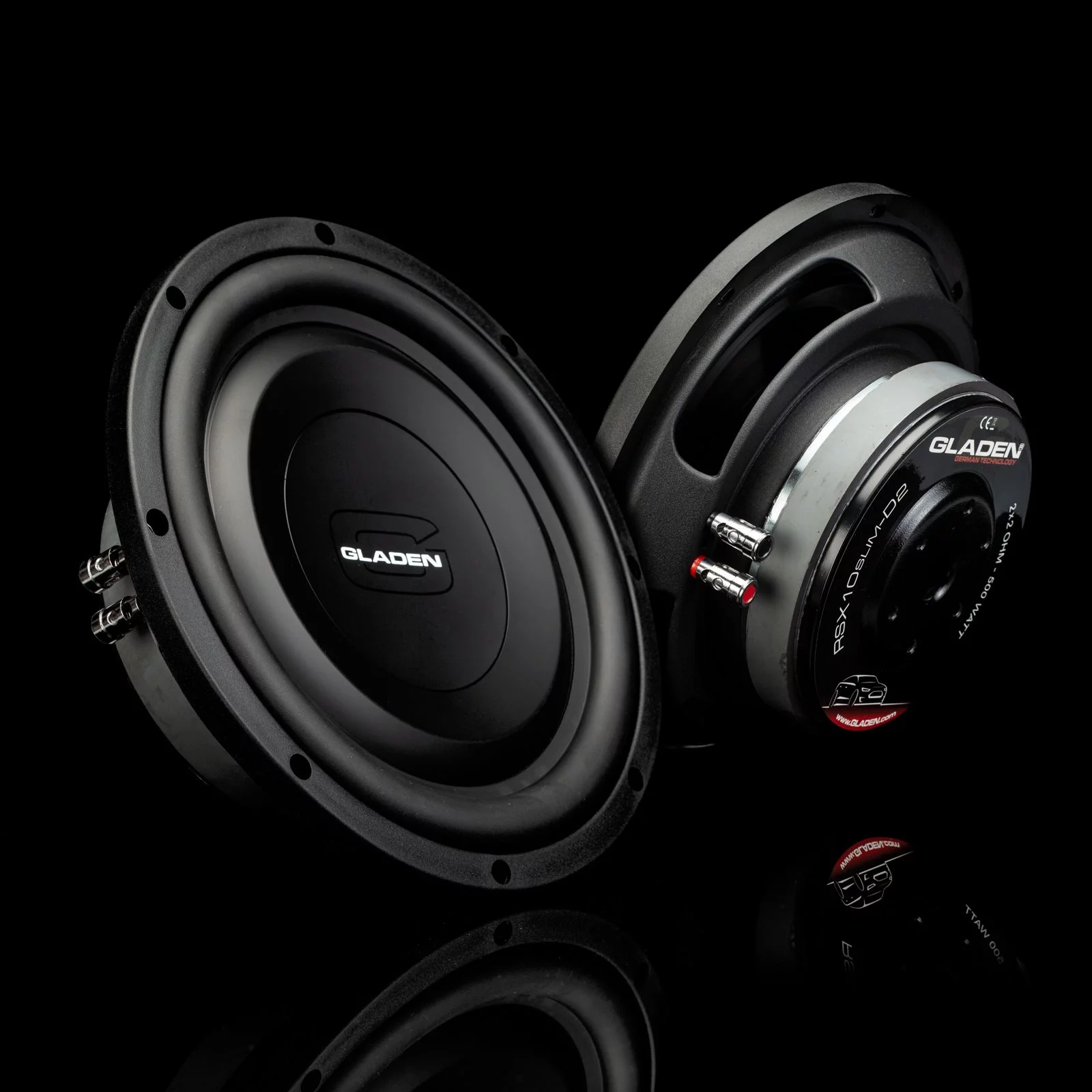

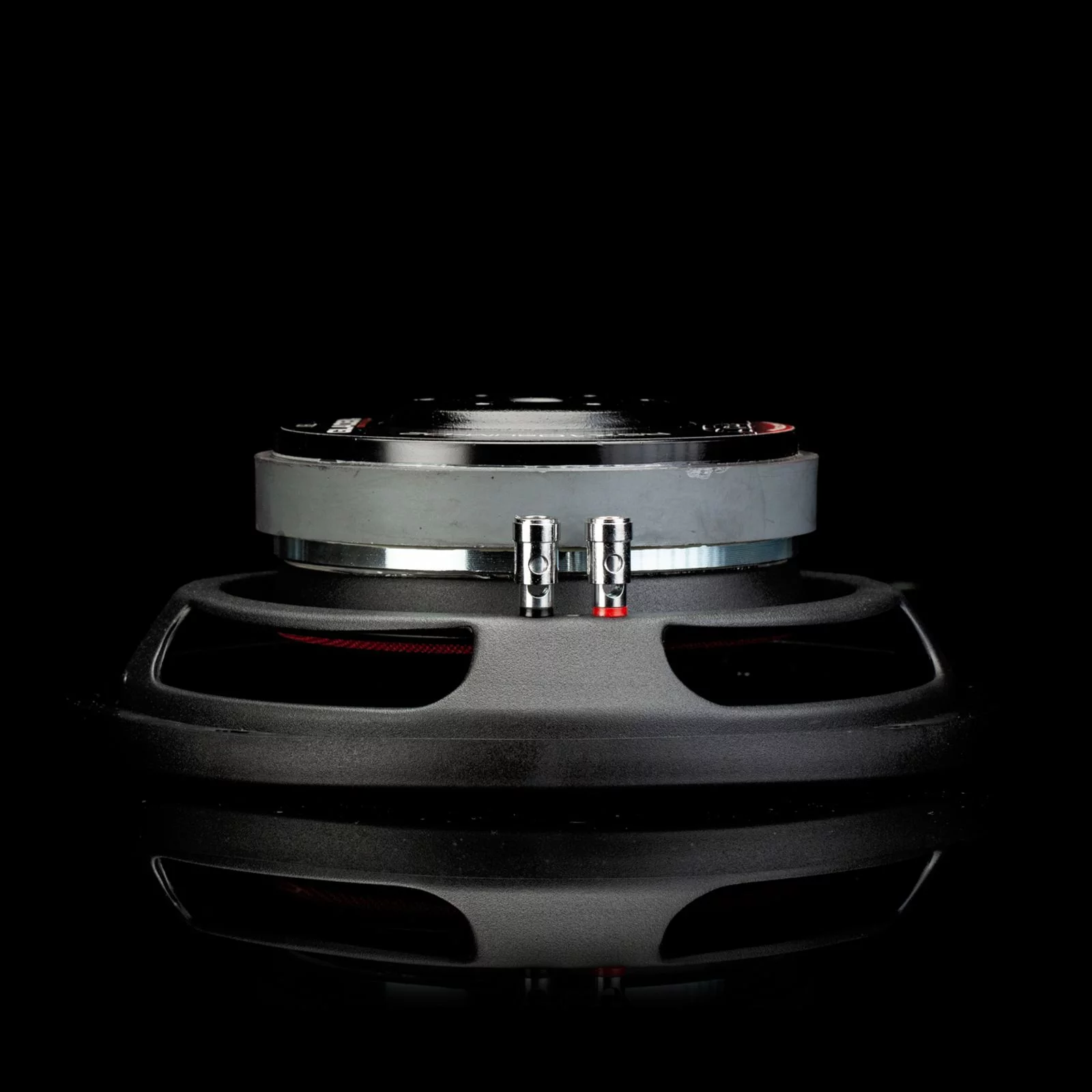

SUBWOOFER

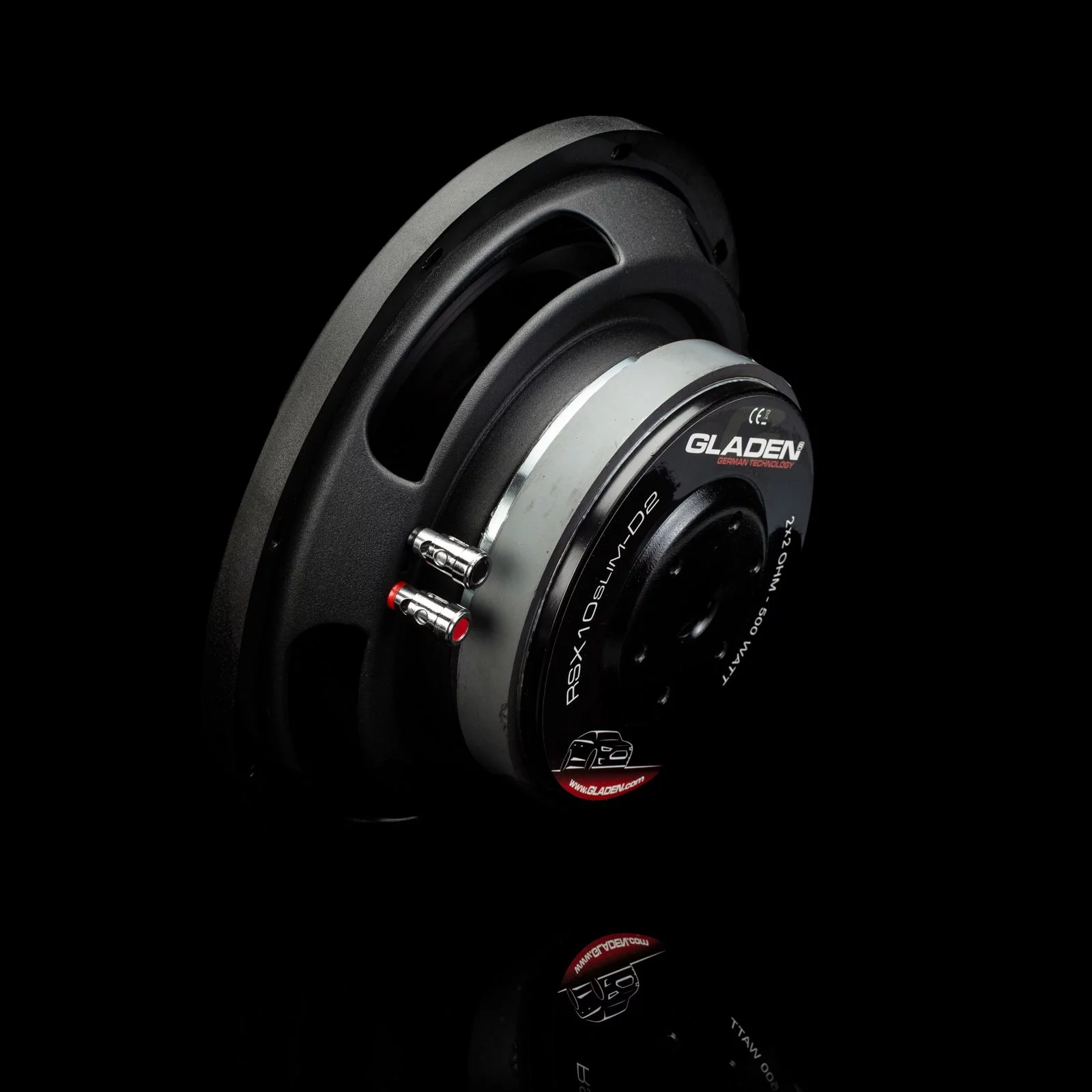

GLADEN RS-X 10 Slim D2
- • 10吋 / 25cm 薄型超低音
- • 500 / 250 瓦
- • 2x2 歐姆雙音圈
- • PP 振膜＋橡膠懸邊
OVERVIEW: GLADEN RS-X 10 Slim D2
RS-X 10 SLIM D2 採用 PP 振膜、PP 防塵罩與橡膠懸邊，雙 2 歐姆音圈設計；適用於密閉式與低音反射式音箱，並另提供成品音箱版本 GA-RSX10SLIM-SB-CU。
- ✓ PP 振膜 (PP membrane)
- ✓ PP 防塵罩 (PP dustcap)
- ✓ 橡膠懸邊 (Rubber surround)
- ✓ 適用密閉式與低音反射式音箱 (Suitable for closed and bass reflex enclosures)
- ✓ 另提供成品音箱版本 GA-RSX10SLIM-SB-CU (Also available as finished enclosure)
Technical Data — RS-X 10 Slim D2
材質:
振膜 (Cone): PP
彈波 (Spider): Nomex
懸邊 (Surround): Rubber
音圈骨架 (Coil former): Aluminum
框架 (Basket): Steel
防塵罩 (Dust Cap): PP
規格參數:
直流電阻 (DC resistance, Rdc): 2 x 1.8 Ω
標稱阻抗 (Nominal impedance, ZN): 2 x 2 Ω
共振頻率 (Resonance frequency, fs): 42 Hz
電氣 Q 值 (Electrical Q factor, Qes): 0.6
總 Q 值 (Total Q factor, Qts): 0.58
振動質量 (Moving mass, Mms): 107 g
等效振膜面積 (Effective piston area, Sd): 350 cm²
等效空氣體積 (Equivalent air volume, Vas): 23.4 L
靈敏度 SPL (2.83V/1m): 86.6 dB 1W/1m
