SUBWOOFER

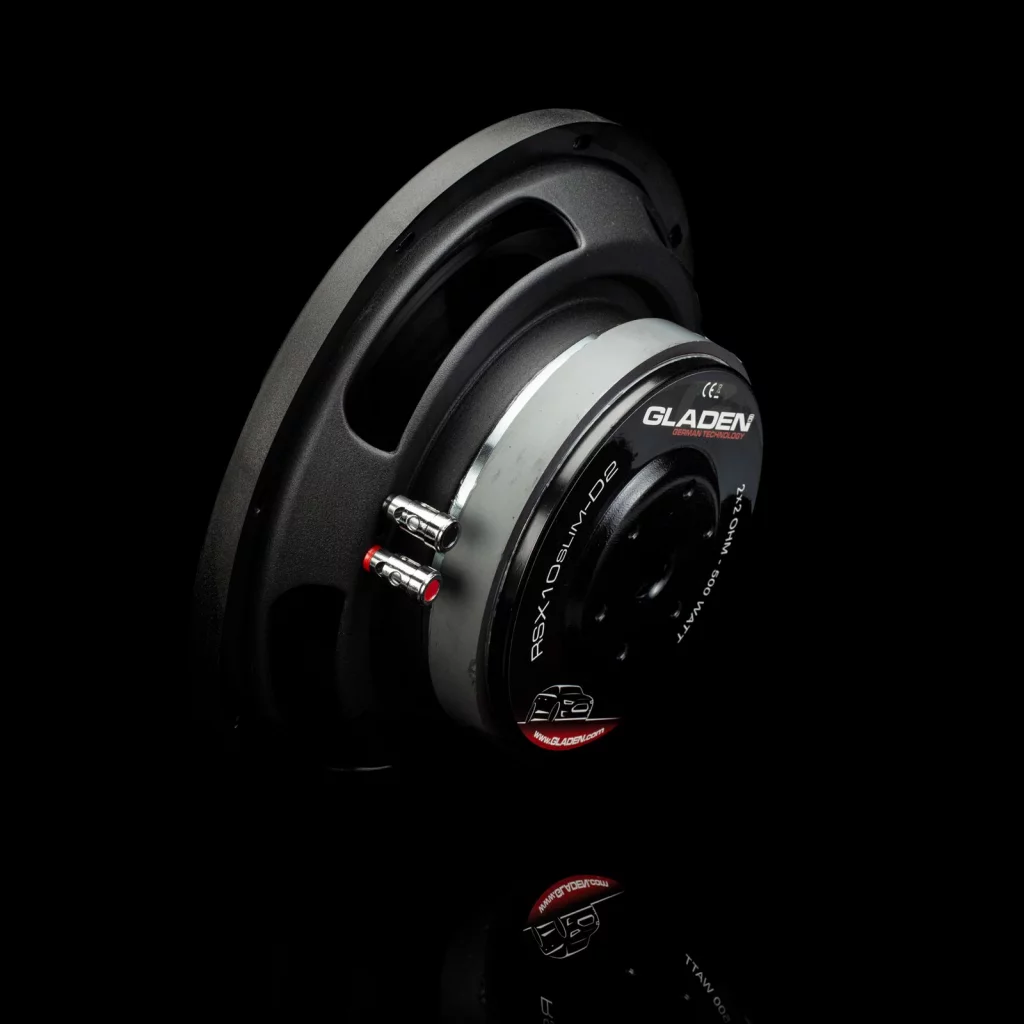

GLADEN RS-X 10 Slim
- • 10" / 25 cm SLIM Subwoofer
- • 500 / 250 Watt
- • 2 x 2 Ohm impedance
- • PP membrane with rubber surround
Overview RS-X 10 Slim

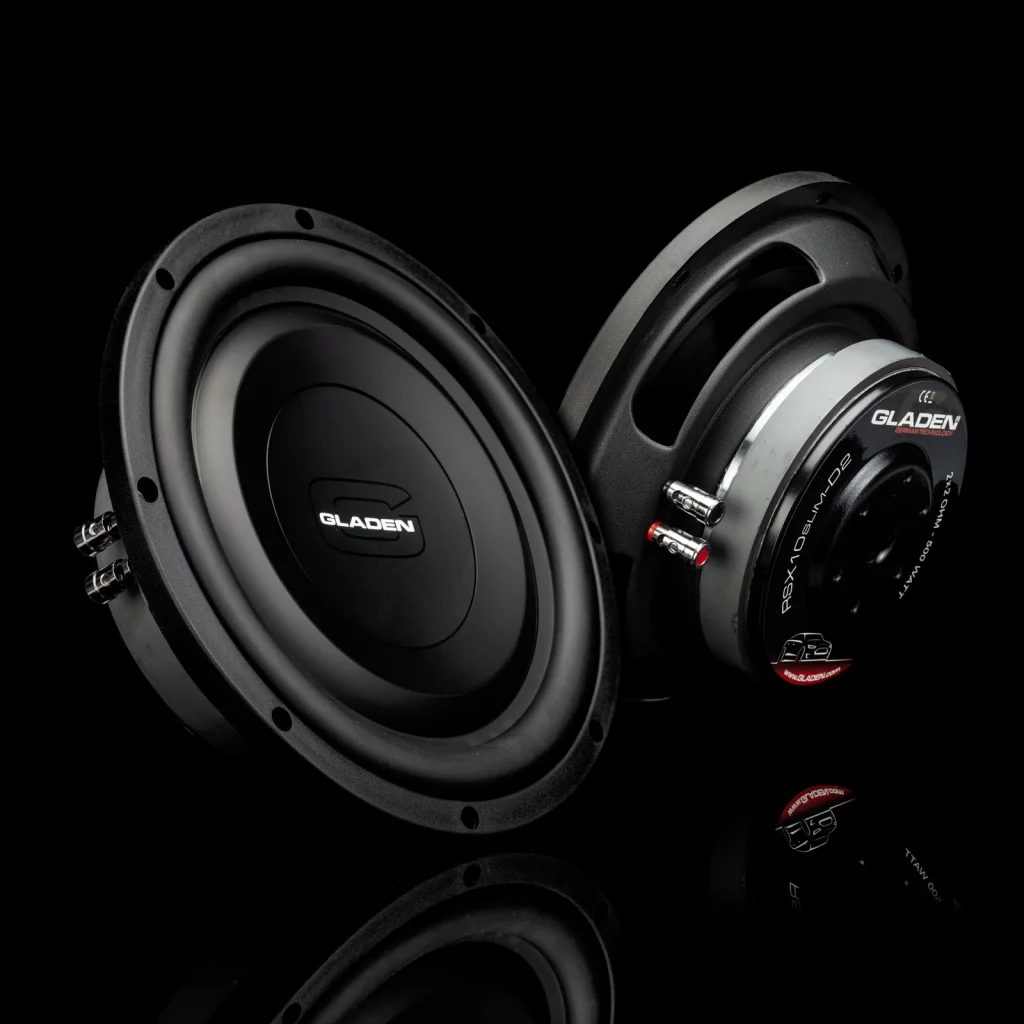

RS-X 10 Slim 為 25 公分薄型超低音單體，採用 PP 振膜、PP 防塵罩與橡膠懸邊，2x2 歐姆雙音圈設計兼具系統搭配彈性。薄型結構可靈活安裝於空間受限的車型，並適用於密閉式或低音反射式音箱，原廠另提供成品音箱版本，便於追求快速安裝的玩家。
- ✓ 10 吋 / 25 公分薄型單體
- ✓ 承受功率：500 / 250 瓦
- ✓ 2 x 2 歐姆雙音圈配置
- ✓ PP 材質振膜
- ✓ PP 材質防塵罩

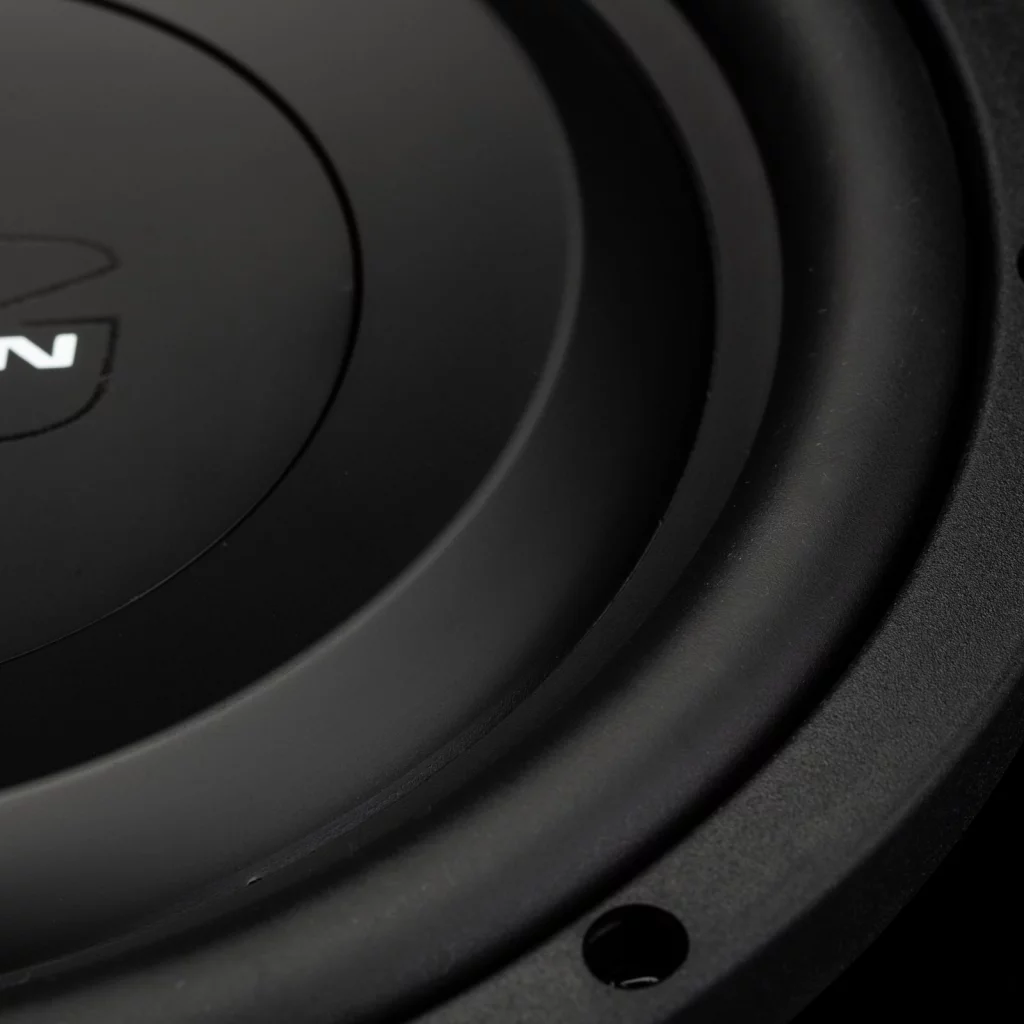

- ✓ 橡膠懸邊設計
- ✓ 適用密閉式音箱
- ✓ 適用低音反射式音箱
- ✓ 另有原廠成品音箱版本可選
Technical Data — RS-X 10 Slim
Material:
Cone: PP
Spider: Nomex
Surround: Rubber
Coil former: Aluminum
Basket: Steel
Dust Cap: PP
Specification:
Power (max / RMS): 500 / 250 Watt
DC resistance (Rdc): 2 x 1,8 Ω
Nominal impedance (ZN): 2 x 2 Ω
Resonance frequency (fs): 42 Hz
Electrical Q factor (Qes): 0,6
Total Q factor (Qts): 0,58
Moving mass (Mms): 107 g
Effective piston area (Sd): 350 cm²
X-Max linear (+/-): 10 mm
Equivalent air volume (Vas): 23,4 Liter
SPL 2,83V/1m: 86,6 dB 1W/1m
EBP: 70
External diameter: 261 mm
Installation diameter: 230 mm
Installation depth: 82 mm
Recommended volume (sealed): 16-30 Liter
Recommended volume (vented): 30-40 Liter
