SUBWOOFER

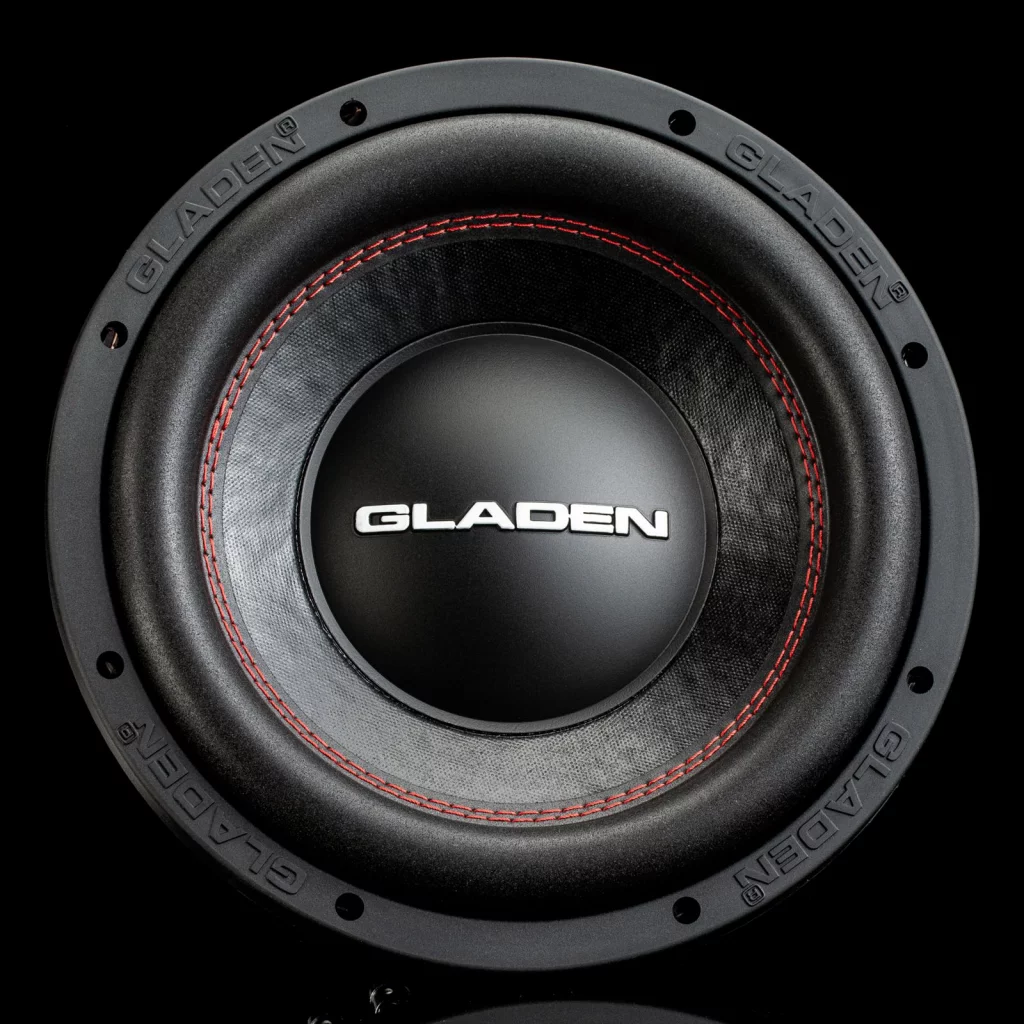

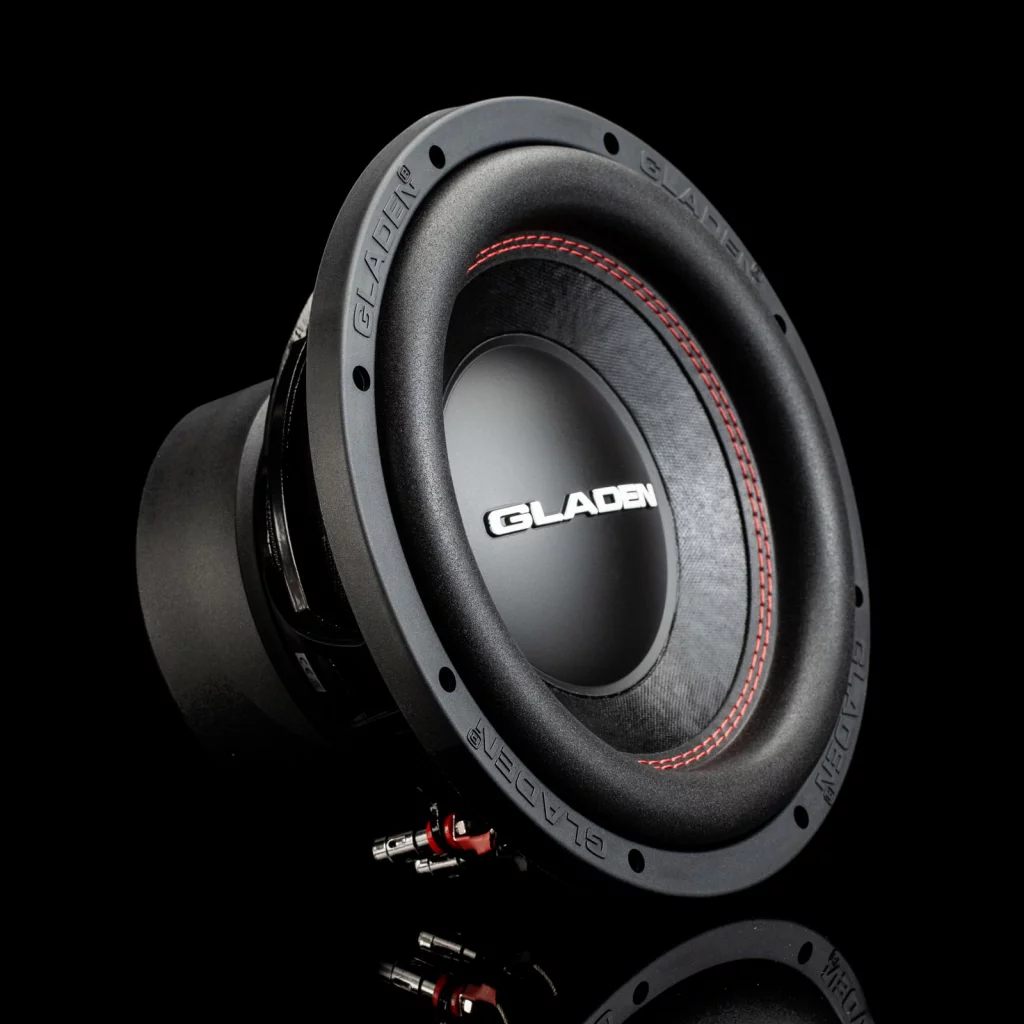

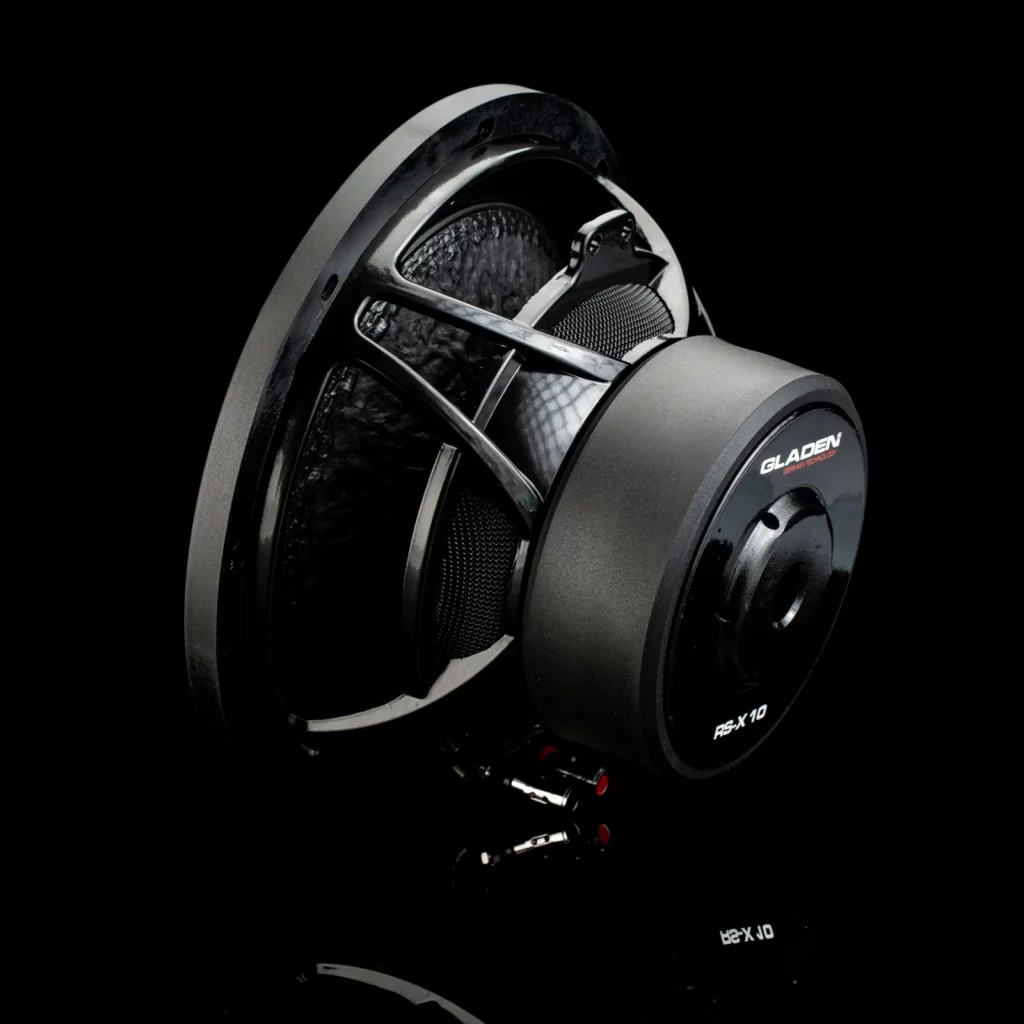

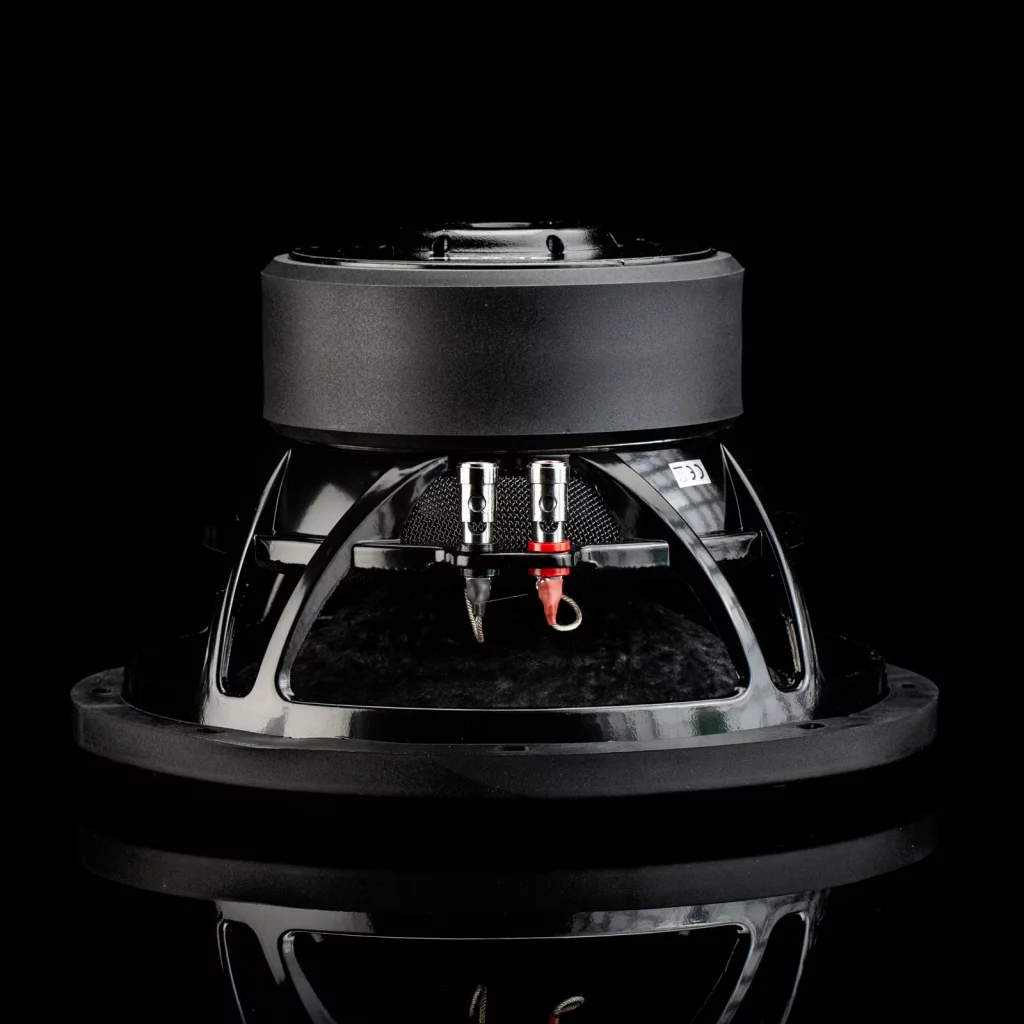

GLADEN RS-X 10
- • 10" / 25 cm Subwoofer
- • 450 / 300 Watt
- • 4 Ohm impedance
- • Cast aluminum basket
Overview RS-X 10
RS-X 10 為 25 公分高效率超低音單體，採用鑄造鋁合金框架、黑色 Nomex 彈波、紙質振膜與 PP 防塵罩，承襲 SQX 系列核心設計理念，於小體積音箱中即可呈現紮實的低頻動態與優異的控制力，是追求精準音質與安裝彈性兼具的理想選擇。
- ✓ 10 吋 / 25 公分單體尺寸
- ✓ 承受功率：450 / 300 瓦
- ✓ 4 歐姆標準阻抗
- ✓ 紙質振膜，自然真實的音色表現
- ✓ Nomex 彈波結構設計
- ✓ 泡棉懸邊，穩定的長期表現
- ✓ 鋁製音圈骨架，散熱優異
- ✓ 鑄造鋁合金框架
- ✓ PP 防塵罩
Technical Data — RS-X 10
Material:
Cone: Paper
Spider: Nomex
Surround: Foam
Coil former: Aluminum
Basket: Aluminum
Dust Cap: PP
Specification:
Power (max / RMS): 450 / 300 Watt
DC resistance (Rdc): 3,74 Ω
Nominal impedance (ZN): 4 Ω
Resonance frequency (fs): 35,57 Hz
Voice coil diameter: 2,5 inch
Mechanical Q factor (Qms): 6,16
Electrical Q factor (Qes): 0,49
Total Q factor (Qts): 0,46
Moving mass (Mms): 121,6 g
Effective piston area (Sd): 346 cm²
Mechanical resistance (Rms): 4,79 kg/s
Compliance (Cms): 0,16 mm/N
Force factor (BL): 13,82 Tm
Equivalent air volume (Vas): 27,69 dm³
SPL 2,83V/1m: 92,2 dB
External diameter: 263 mm
Installation diameter: 238 mm
Installation depth: 140 mm
Magnet diameter: 162 mm
Recommended volume (sealed): 18 Liter
Recommended volume (vented): 33 Liter
