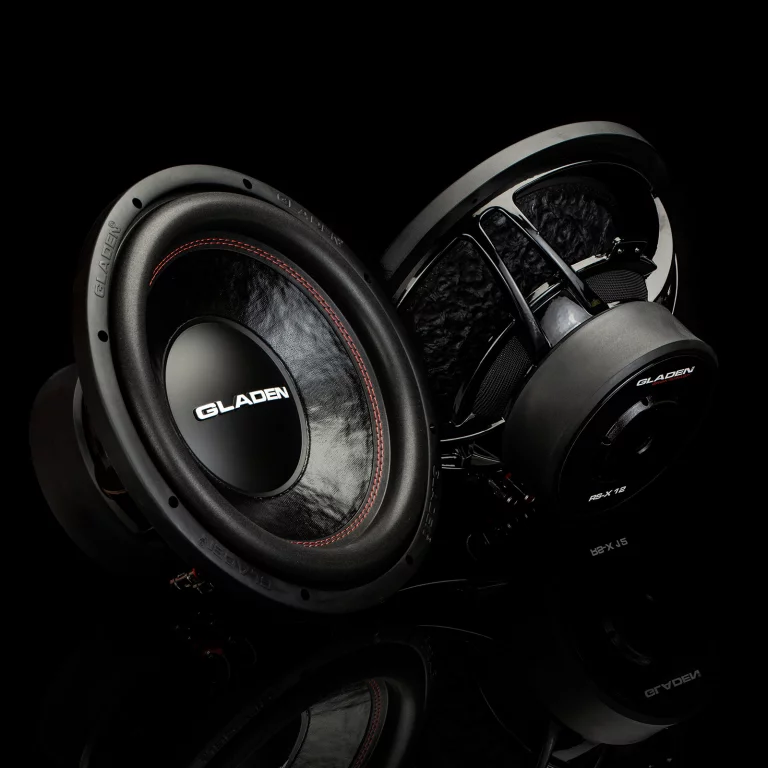

SUBWOOFER
GLADEN RS-X 12
- • 12" / 30 cm Subwoofer
- • 750 / 500 Watt
- • 4 Ohm impedance
- • 3" voice coil
Overview RS-X 12

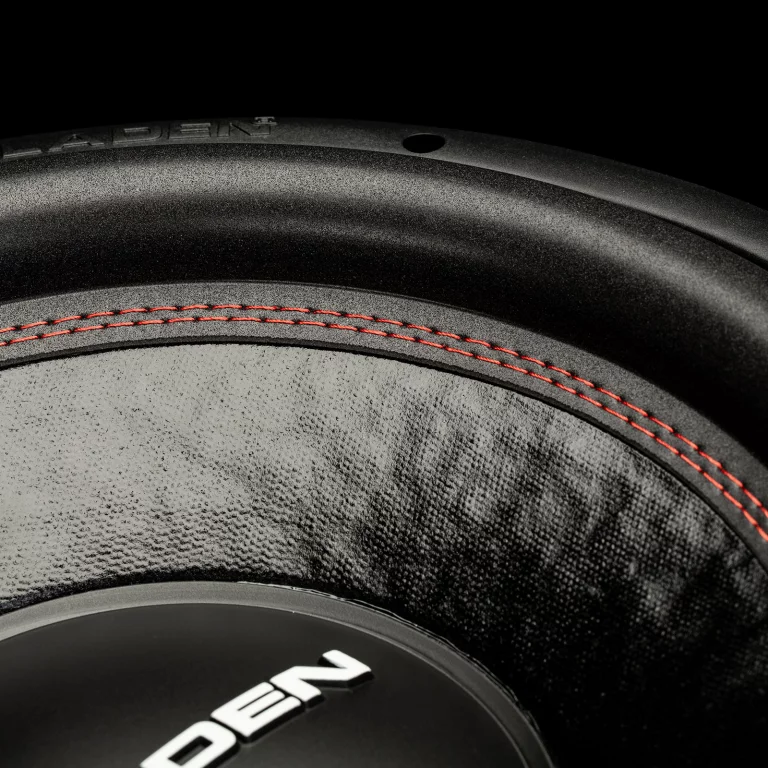

RS-X 12 為 30 公分高效率超低音單體，採用鑄造鋁合金框架、黑色 Nomex 彈波、紙質振膜與 PP 防塵罩等高品質元件，於緊湊體積中提供穩定可靠的低頻輸出。建議搭配 48 公升低音反射式或 32 公升密閉式音箱，可發揮出色的下潛與動態表現。
- ✓ 12 吋 / 30 公分大尺寸單體
- ✓ 承受功率：750 / 500 瓦
- ✓ 4 歐姆標準阻抗
- ✓ 鑄造鋁合金框架，結構穩固
- ✓ 黑色 Nomex 彈波，長期穩定可靠
- ✓ 紙質振膜，呈現自然音色
- ✓ PP 材質防塵罩
- ✓ 建議音箱：48L 低音反射式或 32L 密閉式
Technical Data — RS-X 12
Material:
Cone: Paper
Spider: Nomex
Surround: Foam
Coil former: Aluminum
Basket: Aluminum
Dust Cap: PP
Specification:
Power (max / RMS): 750 / 500 Watt
DC resistance (Rdc): 3,71 Ω
Nominal impedance (ZN): 4 Ω
Resonance frequency (fs): 31,40 Hz
Voice coil diameter: 3 inch
Mechanical Q factor (Qms): 4,92
Electrical Q factor (Qes): 0,49
Total Q factor (Qts): 0,45
Moving mass (Mms): 149,97 g
Effective piston area (Sd): 514 cm²
Mechanical resistance (Rms): 6,54 kg/s
Compliance (Cms): 0,17 mm/N
Force factor (BL): 14,37 Tm
Equivalent air volume (Vas): 63,57 dm³
SPL 2,83V/1m: 94,2 dB
External diameter: 317 mm
Installation diameter: 284 mm
Installation depth: 148 mm
Magnet diameter: 185 mm
Recommended volume (sealed): 27 Liter
Recommended volume (vented): 45 Liter
